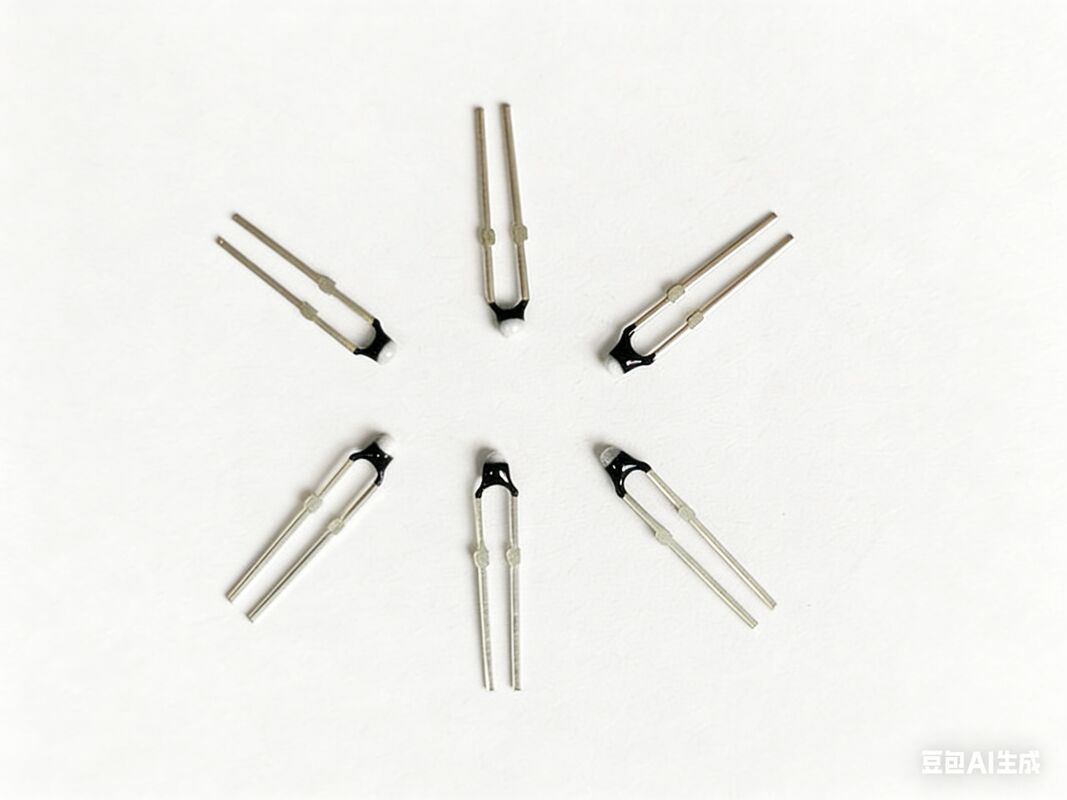

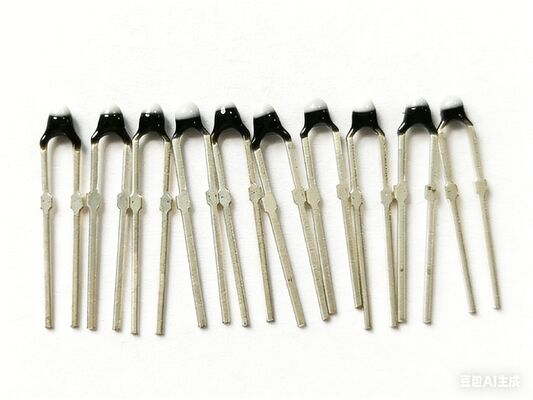

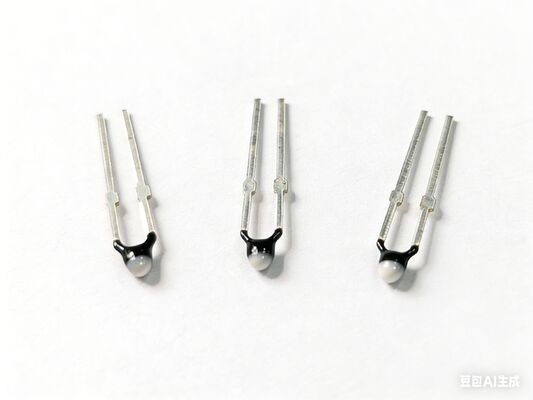

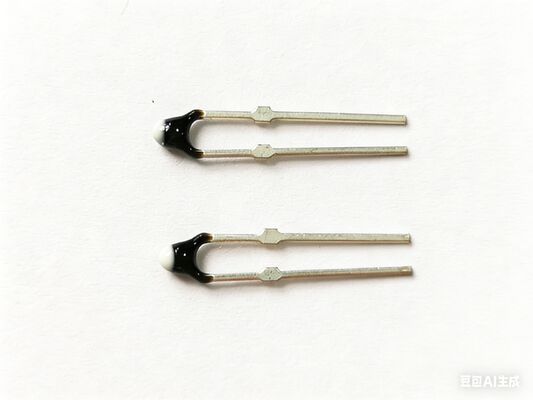

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Hefei Minsing |
| Certificering: | IATF16949/ISO9001/CE/RoHS |
| Modelnummer: | MF5A-3T |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 500 stuks |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | Bulk |
| Levertijd: | 2-10 werkdagen |
| Betalingscondities: | T/T |
| Levering vermogen: | 50 miljoen Stukken per Jaar |
|
Gedetailleerde informatie |
|||
| Hoofdmateriaal: | Epoxy | Looddraad: | 0,5 vertinde 42-legering |
|---|---|---|---|
| Hoofdgrootte: | Φ2,4×Φ3,7mm | Draadlengte: | 17 mm |
| R25℃: | 0.5KΩ-2000KΩ | B Waarde: | 3000K-4500K |
| R Tolerantie: | ±1%,±2%,±3%, ±5% | B tolerantie: | ±0,5% tot ±3% |
Productomschrijving

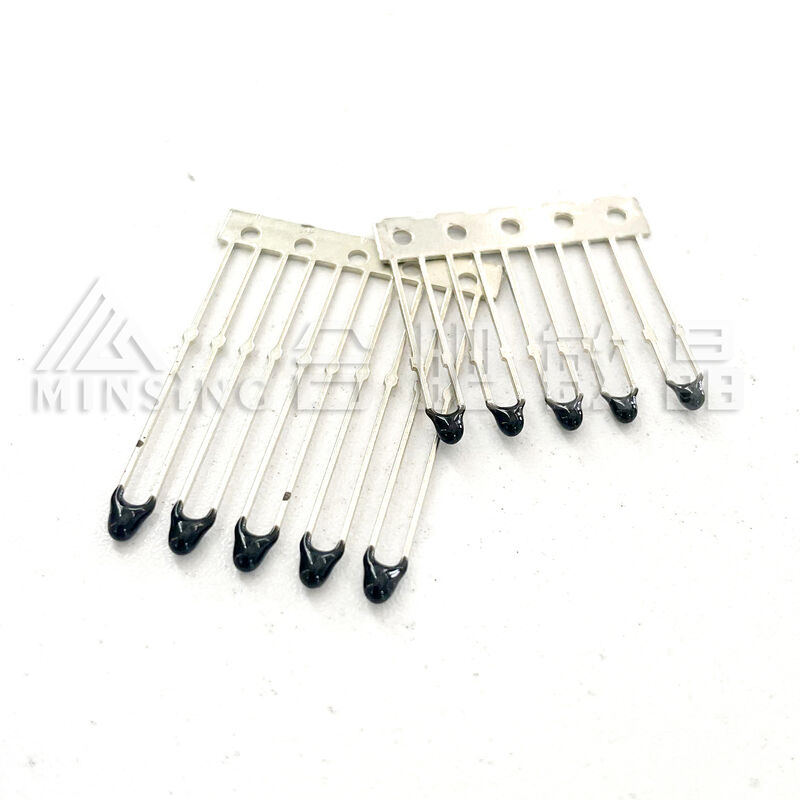

103AT-2 Series Epoxy Thermistor , 0.5 Tin Plated 42 Alloy Lead Wire with Tie Bar, Uniform Shape
Product Feature:
Uniform shape facilitates automated assembly / Long term reliability
Application:
Office automation, measuring instruments, controllers, mobile devices,battery chargers, battery packs,
fan motors, home electronics, HVAC equipment, solar systems, security, thermometers, automotive,
vending machines, refrigerated display cases, agricultural equipment
Caution:
• When bending the lead wires using for example a radio plier make sure to have a minimum distance from the
sensor head of 3 mm.
• Do not apply a mechanical load of more than 2 N in the way depicted in Fig. 1 below. The variation of the load
direction should be less then 0.3 mm (see Fig. 2).
